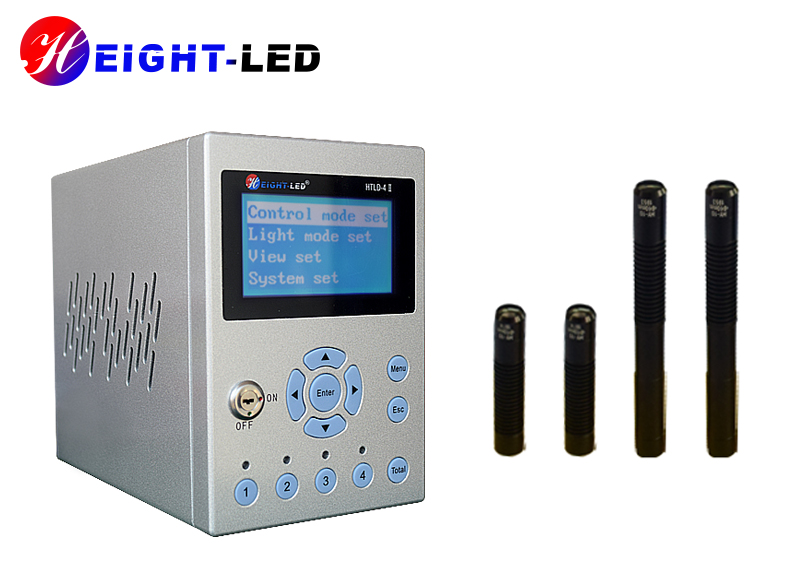

The uvled point light source is divided into two structures: one for the irradiation head and one for the controller.
uvled point light source uses: mobile phone component assembly (LCD module, camera lens, earpiece, housing, microphone, touch screen coating, etc.), optical component assembly and bonding, medical device and medical accessory LEDs, UV light source curing applications, hard disk head assembly (bearings, gold wire fixing, chip bonding, coils, etc.), sensor production (fibre optic sensors, gas sensors, photoelectric sensors, photoelectric encoders, etc.).
What are the advantages of uvled point light source?
1、No thermal radiation.
The use of cold light source, high power luminous body no infrared emitted, the irradiated product surface temperature rise of 5 degrees below, to solve the optical communication, liquid crystal production in the long-term problem of thermal injury.
2, environmental protection without pollution.
The use of semiconductor light emitting, does not contain mercury, and does not produce ozone, uvled point light source processing process no pollution factors to the environment, is a safer and more environmentally friendly alternative to traditional light source technology.
3, super illumination.
uvled point light source curing system is through the conversion of electricity → light energy, so that the LED high-power ultraviolet diode chip to produce high-purity 365nm monochrome ultraviolet light, the energy is highly concentrated in the wavelength band required for uv curing. Achieved than the traditional mercury lamp irradiation method is more optimized for high intensity output and uniformity, almost twice the traditional mercury lamp irradiation luminosity, so that UV adhesives curing faster, shortening the production time and significantly improving production efficiency.
4, longer service life.
Compared to traditional UV curing equipment, its mercury lamp service life of only 800-2000 hours, uvled point light source using uv led UV curing system service life of 30,000 hours. led way can only be lit instantly when the need for ultraviolet light, the service life of the led way is equivalent to 35-40 times the mercury lamp way. Reducing the time it takes to change bulbs increases productivity and is also very energy efficient.
The specifications of the uvled point light source irradiation head light head are divided into four categories: short shaped irradiation head, long shaped irradiation head, irradiation head without fan, irradiation head with fan.
